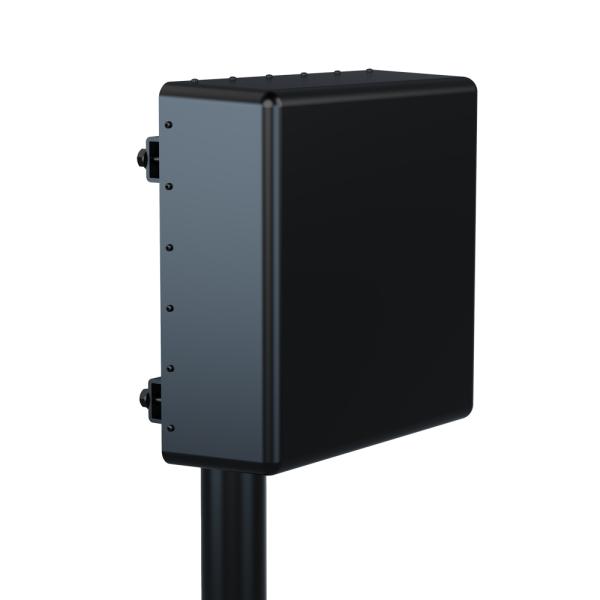

SBA2456DB-90
Steerable Beam Panel for 2.4Ghz and 5Ghz
Download datasheet
The SBA2456DB-P90 is a dual band steerable beam panel antenna covering the full 2.4 and 5 GHz frequency bands (WiFi). The antenna beam can be steered to achieve optimal gain to the desired direction and to avoid interference from unwanted directions. The antenna provides 11 sharp beams with a minimum of 15-degree beamwidth to cover the 90-degree horizontal area. The antenna provides superior gain performance with low side lobe levels. Its extremely fast beam switching ability makes the antenna suitable for UAV/drone detection and counter measures.
*No payment required on checkout
-
Call our Sales team
- +35894522334
-
Email our Sales team
- [email protected]
Specifications & Resources for SBA2456DB-90
Ideal application and market usage
-
Ideal applications
-
-
Electronic countermeasures
- Counter UAS
-
Electronic countermeasures
- Design Features
-
Beam steering
- Frequency range
- 2400 - 2500MHz and 5000 - 5900 MHz
- Polarization
- Nominally vertical
- Gain (typ)
- [email protected] [email protected]
- VSWR
- 2.5:1
- Power handling
- 10W
